External serial servers that provide connectivity to any serial device
PORTSEVERTS 4 PORT RS-232 RJ-45 SRL Digi PortServer TS RJ-45 - Device server - 4 ports - RS-232 DIGI PORTSERVER TS4 RS-232 TORJ-45 DEVIC Digi Device Servers DIGI PORTSERVER TS4 RS-232 TO RJ-45 DEVICE SERVER SERIAL 2 E PortServer TS 4 (RS-232 to RJ-45 Device Server Serial 2 E) Digi PortServer TS 4 port RS-232 RJ-45 Serial to Ethernet Device Server, 9-30VDC (replaces 70001751) DIGI, PORTSERVER TS 4 PORT RS-232 RJ-45 SERIAL TO

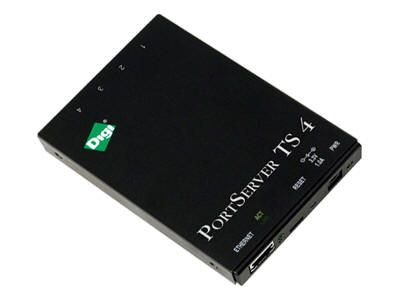

DIGI PORTSERVER TS RJ-45 - DEVICE SERVER - 4 PORTS - RS-232
Image 1 of 1
The PortServer TS 2/4 family delivers simple, reliable and cost-effective network connectivity for multiple serial devices. It addresses the growing need to connect individual devices to the network over industry standard Ethernet in many applications - including retail/point-of-sale, building control and medical point-of-care.Part of Digi's broad device server offering, PortServer TS 2/4 delivers standard serial-to-Ethernet connectivity and is ideal for applications requiring COM ports, serial tunneling, or where TCP Socket, UDP Socket, or UDP Multicast functionality is needed. Digi's patented RealPort technology delivers the industry's most robust, reliable and versatile COM port control and management. RealPort makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing software applications to work with networked device servers instead of requiring a host adapter.
Specifications |
Familly Description: | Network Hardware |
Category Description: | Network Device |
Sub-Category Description: | Other |
Manufacturer Part No.: | 70002045 |
Vendor Name: | DIGI |
Short Description: | PORTSEVERTS 4 PORT RS-232 RJ-45 SRL |
Long Description: | Digi PortServer TS RJ-45 - Device server - 4 ports - RS-232 |
UPC Code: | 663072930042 |
Secondary Update: | Jul 23, 2021 |
Primary Information |
Connectivity Technology: | Wired |
Data Transfer Rate: | 230Kbps |
Features: | Flow control, DHCP support, RARP support, manageable, RealPort technology |
Form Factor: | External |
Networking Type: | Device server |
Networking / Device Type: | Device server |
Service&Support |
Service & Support Type: | 5 years warranty |
Dimensions&Miscellaneous |
Depth: | 0.9Inch |
Header / Localization: | North America |
Height: | 5.2Inch |
Width: | 3.3Inch |
Language: | North America |
Miscellaneous |
Compliant Standards: | CE, EN 60950, UL 1950, CSA 22.2 No. 950, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, AS/NZS 3548 |
Networking |
Data Link Protocol: | Ethernet,Fast Ethernet,RS-232,PPP |
Networking / Ports Qty: | 4 |
Remote Management Protocol: | SNMP,HTTP,Telnet |
Transport Protocol: | TCP/IP |
Power Supply / Device / Voltage Required |
Voltage Required: | AC 110/240 V |
Voltage Input: | AC 110/240 V |
System Requirements |
System Requirements / OS Required: | SCO OpenServer, UnixWare, IBM AIX, SunSoft Solaris, Compaq Tru64 UNIX, HP-UX, Linux, Microsoft Windows NT, Microsoft Windows 98/ME, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003 |
System Requirements: | SCO OpenServer, UnixWare, IBM AIX, SunSoft Solaris, Compaq Tru64 UNIX, HP-UX, Linux, Microsoft Windows NT, Microsoft Windows 98/ME, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003 |
System Requirement: | SCO OpenServer, UnixWare, IBM AIX, SunSoft Solaris, Compaq Tru64 UNIX, HP-UX, Linux, Microsoft Windows NT, Microsoft Windows 98/ME, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003 |
